| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | YK |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Oscillating Granulator Machine | Granulator Type: | Cylinder |
|---|---|---|---|
| Application: | Pharmaceutical | Model: | YK 160 |
| Product Size: | 1mm,2mm | Raw Material: | Drink Powder |
| Highlight: | Oscillating Granulator Machine,oscillating granulator equipment |
||

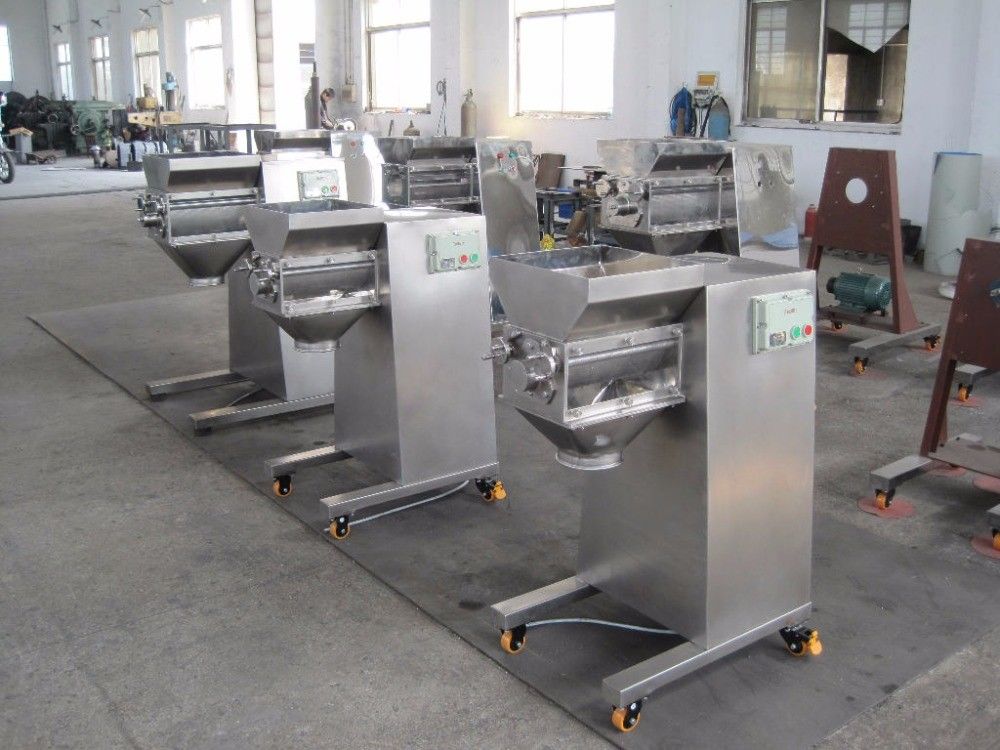

YK 160 model pharmaceutical Oscillating Granulator for drink powder
Pharmaceutical Oscillating Granulator Machine YK 160 Model For Drink Powder
Description
YK 160 model pharmaceutical Oscillating Granulator for drink powder is used for forming the required granules from moist power material, or for crushing dried block stock into granules in required size.
Its main features are: the sieve can be removed and remounted easily; its tension is also adjustable. The rotor also can be removed and cleaned conveniently. The driving mechanism is totally enclosed in the machine body and its lubrication system makes the machine work smoothly.
Features
1. The rotary speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also can be adjustable.
2. The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
Working principle
YK Series low cost Sway Granulator wet granulator machine for banlangen granules is mainly composed of pendulum roller, main body, transmission system, and tightening device of sieve. Under the action of clockwise and counter-clockwise rotating of roller, damp powder mixture will be forced to pass through sieve and then become granules. Model C is a heavy type and suitable for materials with big viscosity.
Technical Parameters
| Model | YK-160B | YK-160C(heavy type) |
| Capacity(kg/batch) | 100~200 | 150-300 |
| Motor power(kw) | 3 | 4 |
| Roller rotating speed (rpm) | 65 | 65 |
| Pendulum Angle | 360 | 360. |
| Diameter of roller(mm) | 160 | 160 |
| Overall dimensions(mm, L-W-H) | 1150-680-1150 | 1260-750-1150 |
| Weight(kg) | 300 | 450 |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
