| Place of Origin: | China |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GHL |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Payment Terms: | T/T or LC at sight |
| Supply Ability: | 20 sets per month |
| Product Name: | Mixing Granulator/industrial Powder Mixer | Application: | Powder |
|---|---|---|---|
| Discharging Mode: | By Cylinder | Feature: | Low Cost |
| Standard: | CE/ROHS/FCC/SGS | Type: | Horizontal Type |
| Highlight: | powder blending machine,powder blending equipment |
||

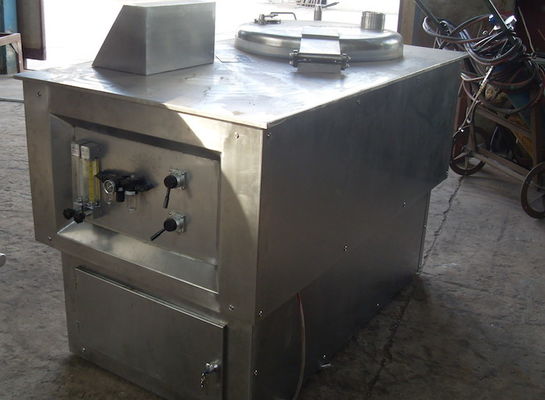

Low cost GHL series full stainless steel high speed mixing granulator
Application
Low cost GHL series full stainless steel high speed mixing granulator is a process machine widely applied for solid preparation production in the pharmaceutical industry. It has such functions as mixing, granulating, etc. It is widely used in such industries as medicine, food, chemical industry, etc.
Work principle
Low cost GHL series full stainless steel high speed mixing granulator is a new generation of wet-mixer granulator, developed based on the old model but adopting newer technologies, this model provides the perfect integration of both. Its working principle is: powdered material is mixed into a wet, soft material by the bottom mixing paddle, and then it is cut into wet, uniform granules.
Features
1. Low cost GHL series full stainless steel high speed mixing granulatoris made of high quality stainless steel.
2. Low cost GHL series full stainless steel high speed mixing granulator is provided with special mixing barrel and conical column of a compound structure. The corners on the inner wall are subject to smooth transition and mirror polishing with easy cleaning and without material sticking.
3. The mixing and granulating procedure can be completed in one step with the materials in the closed mixing barrel.
4. Low cost GHL series full stainless steel high speed mixing granulatoradopts PLC control. The mixing and granulating motors are subject to variable frequency speed adjustment. All operations can be carried out automatically or manually.
5. Low cost GHL series full stainless steel high speed mixing granulator is provided with interlocking protection device to ensure safer operation.
6. Low cost GHL series full stainless steel high speed mixing granulator is equipped with printer to automatically print all process parameters, with the original records conforming to the actual ones.
7. Low cost GHL series full stainless steel high speed mixing granulator can be equipped with wet granulation machine and swing granulator and connect with fluidized bed dryer to form a fully closed granulating production line.
Technical parameters
| Name | GHL-50 | GHL-150 | GHL-200 | GHL-250 | GHL-300 | GHL-400 | GHL-600 |
| Capacity(L) | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Outpu(kg/batch) | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mix speed(r.p.m) | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Mixer power(kw) | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed(r.p.m) | 1500/3000 | ||||||
| Cutting power(kw) | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
|
Compressed air consumption |
0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
