| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | SYH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30sets per month |
| Product Name: | Industrial Powder Mixer | Rotating Mode: | Three Dimensional Motion |
|---|---|---|---|
| Standard: | GMP | Inside Surface: | Mirror Surface |
| Speed Adjust Mode: | By Transducer | Layout Type: | Horizontal |
| Highlight: | powder blending machine,powder blending equipment |
||

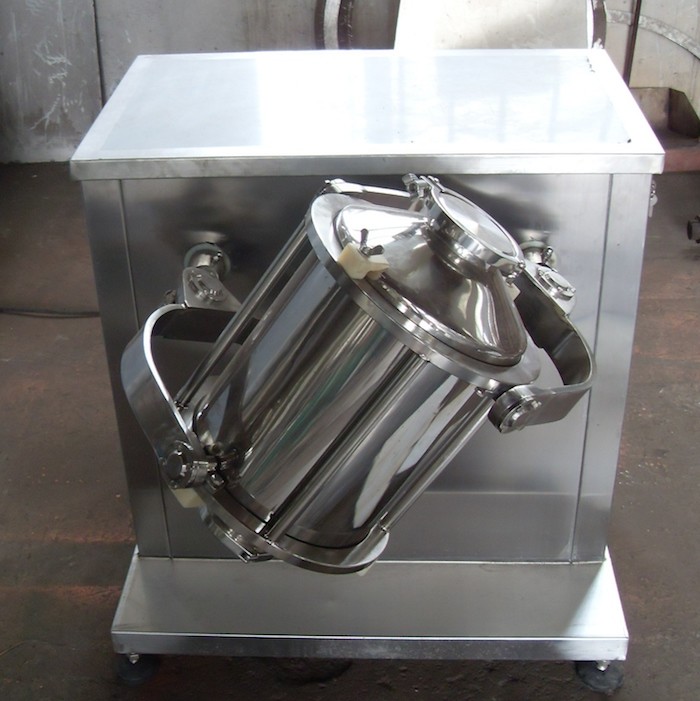

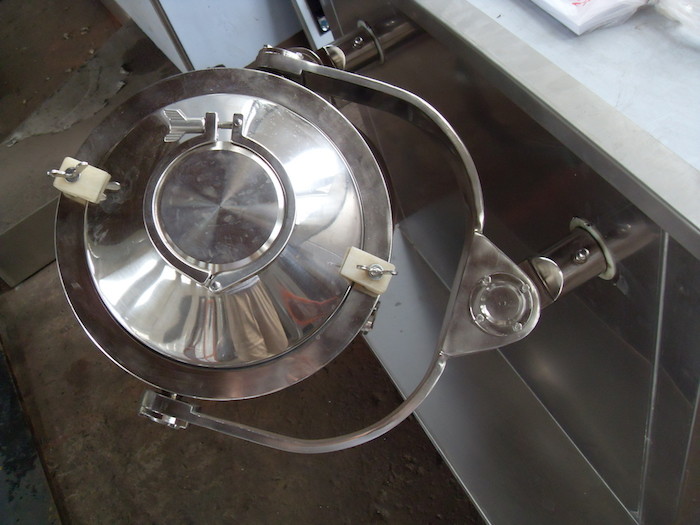

lab use small three dimensional motion industrial powder mixer
for lab model SYH15,SYH20,more detials please contact us.
Application
1. The mixing barrel of lab use small three dimensional motion industrial powder mixer moves in multi-direction. For the material, there is no centrifugal function, without the specific gravity segregation layer division or agglomeration. The mixing rate is up to 99.9%. The machine is an ideal mixer at present.
2. The barrel’s material output is big. Max can be up to 90% (the common mixer has only 40%). It is high in efficiency and short in mixing time.
3. The barrel uses curve connection. The barrel has passed the fine polish treatment.
4. lab use small three dimensional motion industrial powder mixer is used for mixing the powder state and grain state materials with the high uniformity in pharmaceutical, chemical, food, light industries, electronic, mechanical, metallurgical, nation defense industries and other science, technology industries.
Principle of work
The barrel for charging materials is driven by driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that materials will carry out the three dimensional and complex movements along the barrel body so as to fulfill the various movements of material. Through the dissemination, gathering, adding other matter, the aim of uniform mixing can be reached.
Structure
lab use small three dimensional motion industrial powder mixer consists of stand transmission system, electric control system, multi-directional motion mechanism, mixing drum and soon. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.
Technical Parameters
| Model | SYH50 | SYH100 | SYH200 | SYH400 | SYH600 | SYH800 | SYH1000 | SYH1500 |
| Volumeofmixingdrum(L) | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1500 |
| Maxloadingvolume(L) | 40 | 80 | 150 | 300 | 450 | 600 | 750 | 1200 |
| Maxloadingweight(kg) | 25 | 80 | 150 | 200 | 300 | 400 | 500 | 750 |
|
Revolution of main shaft (r/min) |
0~8 |
|||||||
| Powerofmotor(kw) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
| Overall dimensions(mm) |
600×1000 ×1000 |
1200×1800 ×1500 |
1300×1600 ×1500 |
1500×2200 ×1500 |
1850×2500 ×1650 |
1900×2400 ×2100 |
1950×2500 ×2400 |
2600×2500 ×2350 |
| Weight(kg) | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 3500 |
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
