| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | CH |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Wet Mixer/industrial Powder Mixer | Mixer Type: | Horizontal Type |
|---|---|---|---|
| Feature: | Slot Shape | Structure: | Mixing Paddle |
| Processing Object: | Wet Powder | Special Design: | Liquid Feeding |
| Highlight: | powder mixing machine,powder blending equipment |
||

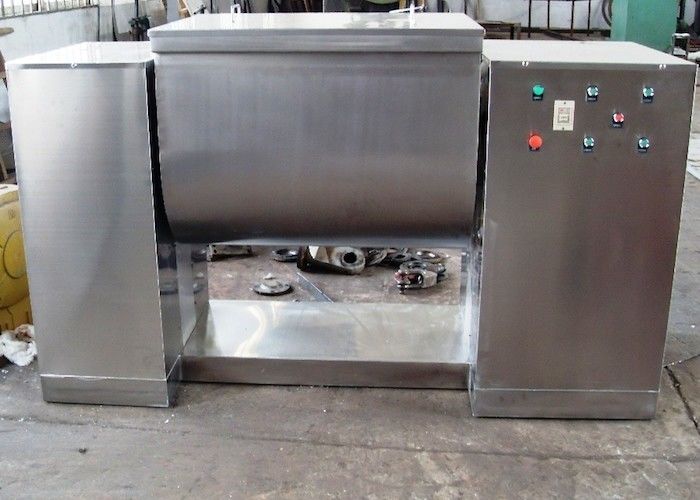

CH Series Horizontal Slot Shape Wet Mixer industrial powder mixer
Liquid Feeding Industrial Powder Mixer Equipment Horizontal Type Slot Shape Wet Mixer CH Series
Main Application
As a stainless steel horizontal mixer, CH Series Horizontal Slot Shape Wet Mixer industrial powder mixer is suitable for the mixing of target materials in powder or paste state evenly in pharmaceutical, chemical and foodstuff industries.
Working Method
By driving of mechanism of the mixer, the stir paddle turns the target material to and fro to mix it evenly. Electric control is applied to set the mixing time and the mixer will stop automatically when time is up, so as to improve the mixing effect of materials.
Features
1. No dead corner, uniform mixture.
2. Mixing dry powder with liquid
3. Increase to blend the function compulsorily and even mixing efficiency
4. The whole machine is made of Stainless steel SS304/316
5. Electrical heating (as your requirement)
Technical Parameters
| Model |
Total volume (L) |
Material feed (kg/batch) |
Stirring speed (r/min) |
Admixpower (kw) |
Discharge Power(kw) |
Overall dimensions(mm) |
| 150 | 150 | 30 | 24 | 3 | 0.55 | 1360×540×1100 |
| 200 | 200 | 40 | 24 | 4 | 0.55 | 1460×600×1200 |
| 300 | 300 | 60 | 24 | 4 | 1.5 | 1900×750×1300 |
| 500 | 500 | 120 | 20 | 5.5 | 2.2 | 2150×860×1560 |
| 750 | 750 | 150 | 19 | 7.5 | 2.2 | 2300×1260×800 |
| 1000 | 1000 | 270 | 19 | 7.5 | 3 | 2500×1300×860 |
| 1500 | 1500 | 400 | 14 | 11 | 3 | 2600×1400×940 |
| 2000 | 2000 | 550 | 12 | 11 | 4 | 3000×1500×1160 |
| 2500 | 2500 | 630 | 12 | 15 | 4 | 3500×1620×1250 |
| 3000 | 3000 | 750 | 10 | 18.5 | 5.5 | 3800×1780×1150 |
Note:alldetailsaboveforreferenceonly.Becauseofmaterialfeatures,theparametersvary.wehavetherighttochange butnot notice,pardon!
