| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | ZLPG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Spraying Dryer/spray Drying Equipment | Application: | Chinese Medical Extract |
|---|---|---|---|
| Feature: | Double Cyclone | Cooling Design: | Air Sweep |
| Dusting Type: | Bag Filter,water Dust Scrubber | Discharging Mode: | Cyclone |
| Highlight: | spray drying machine,industrial spray dryer |
||

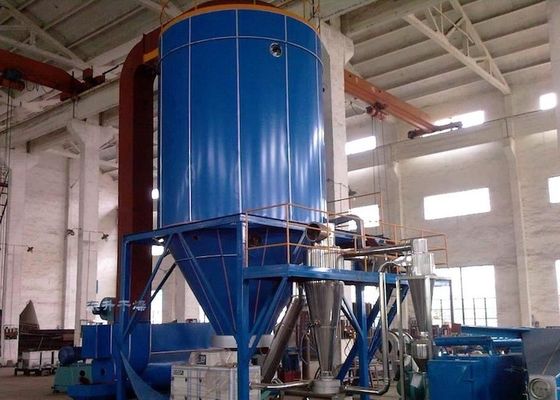

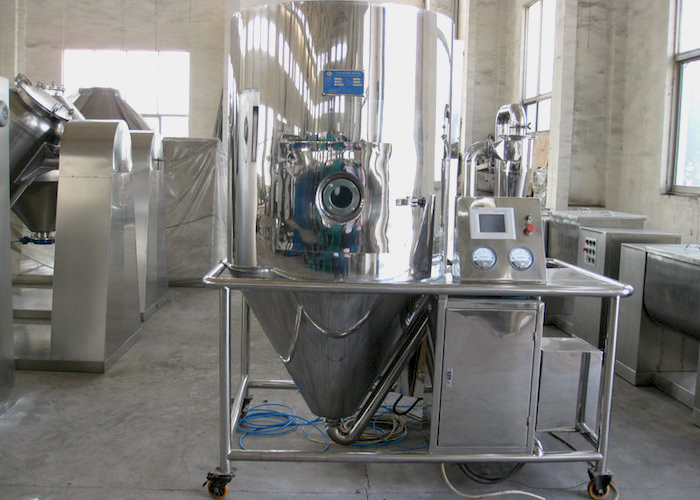

double cyclone Spraying dryer with air sweep for Chinese medical extract
Descriptions
double cyclone Spraying dryer with air sweep for Chinese medical extract adapts full seal form. All parts are made of stainless steel. It is equipped with three grades of purifying apparatus. The filtered air reaches the requirement of one hundred thousand grades. The cooling appetites of wall is installed at the cylinder body and top.It makes the wall temperature less than 80°C, Air sweeping device is installed inside the drying tower. The dried immrsedointment powder of traditional Chinese medicinecan not appear the phenomenon of carbonization and degeneration. The ratio of received powder is raised greatly. Moreover it can not produce the phenomenon of medicine mixing and wall staying.
Working principle
double cyclone Spraying dryer with air sweep for Chinese medical extract is an application of centrifuge atomizing technique for special raw materials. ZLPG Series Herbal Extract Spray Drying Equipment with cooling jacket is an apparatus using high-speed centrifuge atomizer to make raw material distributed in fog that contacts with hot air fully and finish the drying momentarily and form powder product.
The special drier for immersed ointment of traditional Chinese medicine is used to solve immersed ointment of traditional Chinese medicine and extracted liquid of plant. It selves the conditions existed in original LPG high-speed atomizing dryer. In view of this, according to the properties and process requirements of immersed ointment of traditional Chinese medicine, our factory researched and designed the special drier for immersed ointment of traditional Chinese medicine and won two items of China patent.
Features
1 Three-stage air filters are used on air pre-treatment system and air can be purified up to 100 thousand level.
2. PLC program control system circuit is used and cartoons of contact screen displays technological process. Variable data carries out automatic trace and regulation by fuzzy technique, the atomizer is adjusted stably frequency converter, temperature of incoming air is adjusted by power-regulator, precision can teach plus and minus two so as to largely reduce energy consumption. Inlet and outlet temperature as well as pressure inside the tower can be set up precisely.
Technical parameters
| Type | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Evaporation rate( kg/h) | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Input capacity per hour (kg/h) | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Solid content of raw material(%) | 18-25 | |||||||||
| Moisture of finished product(%) | 3-5 | |||||||||
| Electrical power(kw) | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| Heating fuel | steam plus electricity | |||||||||
| collecting way and its efficiency | two-grad cyclone or grade cyclone duster and one-grade damp duster ≥95% | |||||||||
| automatic control | indicator of temperature of hot air and humidity of air exhaust | |||||||||
| temperature of air in (℃) | 150-200 | |||||||||
| temperature of air out (℃) | 80-100 | |||||||||
|
overall dimensions (mm) |
L | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| H | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
