| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | GFG |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Fluid Bed Equipment | Feature: | Dischargable |
|---|---|---|---|
| Application: | Powder Or Granules | Feeding Mode: | Automatic Feeding |
| Dust-eliminating Mode: | By Bag Filter | Working Type: | Batch Type |
| Highlight: | 30kw Pharmaceutical Fluid Bed Dryer,Continuous fbd dryer |
||

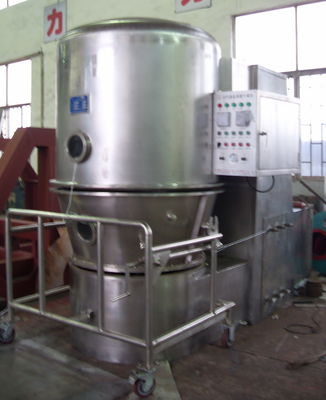

dischargable high efficiency fluid bed equipment with stirring shaft
1. Meet GMP
2. Easy to operation
3. Contact parts SS304 or SS316L
4. PLC touch screen cntrol
5. Fluid bed dryer
Application
Drying raw material of damp granule and powder in pharmaceutical industry, foodstuff industry, feed
industry, chemical industry and so on Big granule, little block, stickiness granule row material; Raw
material whose volume is changed after dried.
Features
1. The structure of fluid-bed dryer provides dead angle.
2. There is stirring in the bed. It provides the gather of damp raw material and making the flow channel during drying.
3. dischargable high efficiency fluid bed equipment with stirring shaft is adopted bag filter on the top of bed. Filter bag material is anti static-electric special fiber; it is safe in operation.
4. dischargable high efficiency fluid bed equipment with stirring shaft is adopted tipping discharger. It is convenient in operation.
5. dischargable high efficiency fluid bed equipment with stirring shaft is in conformity with the requirements of GMP standard.
6. dischargable high efficiency fluid bed equipment with stirring shaft can be made in accordance with the requirements of automatic feeding and discharging.
Technical parameters
| Item | Unit | Specification | ||||||||
| Feeding capacity | kg /batch | 60 | 100 | 120 | 150 | 200 | 300 | 500 | ≥800 | |
| Power of fan | kw | 11 | 15 | 18.5 | 22 | 22 | 30 | 37 | By URS | |
| Stirring power | kw | 0.55 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Stirring speed | rpm | 11 | ||||||||
| consumption of steam | kg/h | 141 | 170 | 170 | 240 | 282 | 366 | 451 | ||
| working time | min | 15-40(Decided according to raw material | ||||||||
| Height of main machine | Square | mm | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 | |
| Round | mm | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | ||
All datas are for reference only. According to the features of material, our factory has the right change but not notice, pardon!
