| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE |
| Model Number: | XF |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 10 sets per month |
| Product Name: | Boiling Dryer /fluid Bed Dryer | Dryer Shape: | Horizontal |
|---|---|---|---|
| Drying Type: | Continuous | Material: | Granules,powder |
| Dusting Type: | Bag Filter,cyclone | Application: | Indoor |
| Highlight: | fluid bed equipment,fbd dryer |
||
XF series Horizontal Box Shape Continuous Type Fluid Bed Dryer
Description
XF series Horizontal Box Shape Continuous Type Fluid Bed Dryer consists of air filter, heater, fluidized-bed main machine, feeder, cyclone separator, bag filter, high-pressure centrifuge fan and operation platform. Because the properties of raw materials different, when equip the dust removing equipment, we should consider practical needs. We can select cyclone separator and cloth bag duster at the same time or one of them. generally speaking, select cyclone separator only for raw material that is large in specific gravity but cloth bag filter for powder or small granules that is light in specific gravity. Meanwhile air feeding device and belt conveyor for selection.
Application
Through continuously improvement over 30 years, XF series Horizontal Box Shape Continuous Type Fluid Bed Dryer has widely applied in the field of pharmaceutical, chemicals, foodstuff, processing grain etc. For example, the dehumidification and drying of and granular materials such as bulk pharmaceuticals, granular patent medicines, preparations, feed, plastic resin etc. The granular diameter shall be within the range from 0.1to 6mm and the best is 0.5 to 3mm
Working principle

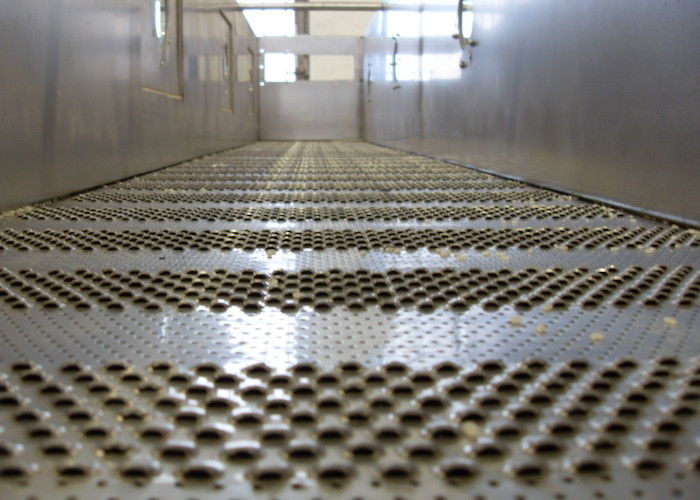

Clean&hot air enters into fluidization bed through distribution of valve plate. Wet material fed from feeder will be formed a fluidization state by hot air(jumping with the bed like boiling water),so it is called fluidizing dryer. Because of the wide contact between hot air and materials, the drying time is very short. air enters from one end of bed, through “boiling” several minutes, and then comes out automatically from the other end. The dryer is also applicable for thermal sensitive material as a result of very short drying time and lowe temperature of material proper.
Advantages
Automatic production can be realized. continuous drying equipment. quick drying speed, low in drying temperature. It can guarantee the quality of products.
Installation explanation
Fluidizing bed, cyclone separator and bag filter should be placed on the flat concrete ground, and no foundation screws needed. The fan with under frame and foundation screws may be installed indoor or outdoor. The plan can be adjusted slightly in accordance with the practical conditions.
No air should leak in air pipe system to be free from the influence on drying efficiency.
Technical Parameters
| Model | XF0.25-1(XF10) | XF0.25-2(XF20) | XF0.25-3(XF30) | XF0.25-6 | XF0.3-2 | XF0.3-4 | XF0.3-6 | XF0.3-8 | XF0.3-10 | XF0.4-4 | XF0.4-6 |
| Area of bed layer(m2) | 0.25 | 0.5 | 1.0 | 1.5 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 1.6 | 2.4 |
| Drying capacity(kgh2o/h) | 10-15 | 20-25 | 30-45 | 52-75 | -30 | 42-60 | 63-90 | 84-120 | 105-150 | 56-80 | 84-120 |
| Power of fan(kw) | 5.5 | 7.5 | 15 | 22 | 7.5 | 15 | 22 | 30 | 30 | 30 | 37 |
| Temperature of air in(℃) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Tem. of raw material(℃) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
|
Overall dimensions (main frame)L×W×H(m) |
1×0.6×3.35 | 2×0.6×3.35 | 4×0.6×3.35 | 6×0.6×3.35 | 2×0.70×3.4 | 4×0.7×3.4 | 6×0.7×3.4 | 8×0.7×3.4 |
10×0.7×3.4 |
4×1×3.58 |
6×1×3.58 |
| Occupied area(m2) | 18 | 25 | 35 | 40 | 25 | 38 | 45 | 56 | 70 | 18 | 56 |
| Model |
XF0.5-4 (XF50) |
XF0.5-6 | XF0.5-8 | XF0.5-10 | XF0.5-12 | XF0.5-14 | XF0.5-16 | XF0.5-18 |
| Area of bed layer(m2) | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 |
| Drying capacity(kgh2o/h) | 70-100 | 105-150 | 140-200 | 175-250 | 210-300 | 245-350 | 280-400 | 315-450 |
| Power of fan(kw) | 30 | 44 | 60 | 90 | 111 | 148 | 169 | 197 |
| Temperature of air in(℃) | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 | 120-140 |
| Tem. of raw material(℃) | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
|
Overall dimensions (main frame)L×W×H(m) |
4×1.2×4.1 | 6×1.2×4.1 | 8×1.2×4.1 | 10×1.2×4.1 | 12×1.2×4.1 |
12×1.2×4.1 |
16×1.2×4.1 |
18×1.2×4.1 |
| Occupied area(m2) | 50 | 70 | 82 | 100 | 140 | 180 | 225 | 268 |
NOTE: The drying capacity is measured on the basis of the primary and final moisture contents of 20% and 5% respectively of drying plum crystal and air intake temperature at 130 ℃.drying capacity for other material will be based on the practical drying condition.
