| Place of Origin: | CHINA |
|---|---|
| Brand Name: | YIGAN |
| Certification: | CE,GMP |
| Model Number: | CT,CT-C |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Delivery Time: | 20 working days after received your payment |
| Supply Ability: | 30 sets per month |
| Product Name: | Hot Air Drying Oven | Feature: | GMP Standard |
|---|---|---|---|
| Construction: | Trolley,tray | Application: | Most Material |
| Heat Resource: | Electric,steam | Drying Type: | Hot Air Circulation |
| Highlight: | industrial drying oven,industrial flash dryer,tray hot air drying oven |
||

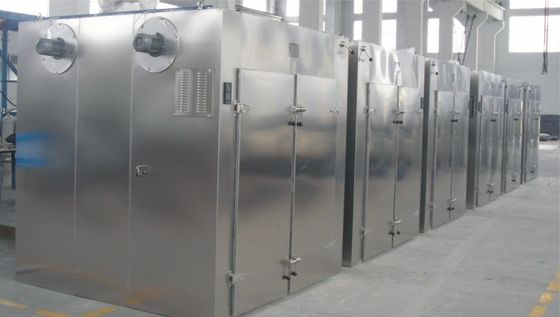

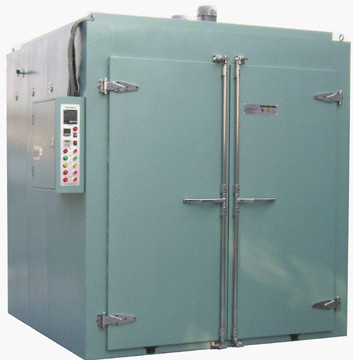

CT-C Series GMP Standard Hot Air Circulation Oven Dryer with trolley and tray
Feature
1. Most of hot air circling inside the oven. High thermal efficiency. Saving energy source.
2. Enhanced ventilation and adjustable air divider plate inside the oven. Raw materials can be dried evenly.
3. The heat source can be steam, hot water, electricity ,heat-conducting oil or hot air from furnace.
Application
CT-C Series GMP Standard Hot Air Circulation Oven Dryer with trolley and tray is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, and tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Description
1. Made of Food Grade stainless steel
2. Used for fruit vegetable fish
3. Heating by electrical or gas
Detail information of Food Drying Machine:
1. 304 fully stainless steel or carbon steel but touch the food use stainless steel.
2. use for food, it include fruit. vegetable. fish and herb and so on.
3. easy to operate and clean
4. by electrical, gas, diesel
5. there have the tray in the car for storage the food for dry.
Technical Parameters
| Model | Drying area | Capacity (kg/batch) | Fan power (kw) |
Steam consumption (kg/h) |
Radiation area(m2) | Electrical heater power(kw) | Overall dimension L,W,H(mm) | Door | Trolley | Tray | weight (kg) |
| CT-C-O | 7.1 | 60 | 0.45 | 10 | 10 | 6 | 1200×1000×1750 | 1 | 1 | 24 | 820 |
| CT-C-1 | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 2300×1200×2000 | 2 | 2 | 48 | 1580 |
| CT-C-1A | 14.1 | 120 | 0.45 | 18 | 20 | 15 | 1200×2200×2000 | 1 | 2 | 48 | 1580 |
| CT-C-2 | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 2300×2200×2000 | 2 | 4 | 96 | 1800 |
| CT-C-2A | 28.3 | 240 | 0.45×2 | 36 | 40 | 30 | 4460×1200×2290 | 4 | 4 | 96 | 1880 |
| CT-C-3 | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 3430×2200×2000 | 3 | 6 | 144 | 2100 |
| CT-C-3A | 42.4 | 360 | 0.45×3 | 54 | 80 | 45 | 2300×3200×2000 | 2 | 6 | 144 | 2210 |
| CT-C-4 | 56.5 | 480 | 0.45×4 | 72 | 100 | 60 | 4460×2200×2290 | 4 | 8 | 192 | 2800 |
|
Information above for standard drying oven with Steam radiator or electrical heater, drying temperature 50~140℃. Power above for axial flow fan (Default hot-air circulating fan).Centrifugal fan for optional. Outer cover of the oven made of carbon steel or stainless steel. Inner shell aluminum alloy or stainless steel. Tray without holes or with holes for optional. Dehumidify fan for optional. Model including A is special trolley layout for the site with floor area limits. |
|||||||||||
All data for reference only. According to the material features, we have the right to change but not notice, pardon!
